HKDI 3-leaf telescopic  (2022)

• Proprietary 3-leaf telescopic design.
• 9m wide x 2.5m high, 1,800 Kg in weight.
• Motorized by Tousek VFD operator.
• Completely open in 16 seconds.
• View footage on YouTube.

Beacon Hill Mont Verra  (2022)

• Proprietary On-Slope fold gate.
• Trapezoidal shape to match the sloped entrance.
• Motorized by FAAC hydraulic operator.
• 7.3m drive-through width for EVA compliance.
• Completely open in 10 seconds.

• Good Design Award 2022.
• Arch top gates and fences.
• All aluminium construction.
• Automatic slide gate powered by Casit motor.
• Architect Miss Annette Chu, Eureka

Square Mile Renlita Vertical Bifold  (2021)

• Counter weight balanced vertical bifold door.
• Proprietary Renlita door made in USA.
• Motorized by LiftMaster shaft operator.
• 16m vertical lift from street to 3/F with RB crane.
• Weights 1 ton 5m wide x 4.2m high.

Hi-speed slide gate  (2020)

• Class gate design withe bronze decos.
• Motorized by Tousek TPS 40Pro Hi-speed motor.
• Mechanical brake, force sensor and safety edge.
• Weights 2 ton.
• Chain-cable system for intercom and wicket door.

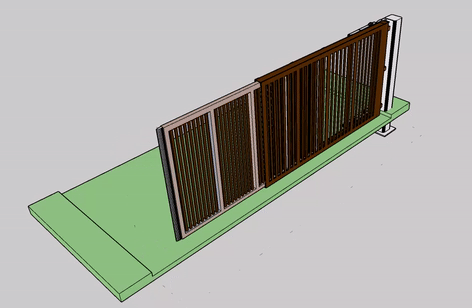

Swing + Telescopic Slide gate  (2020)

• Cantilever system designed for 7m opening width.
• To open, the telescopic slide gate retracts into the swing gate, then the swing gate powered by 2 Tousek Swing X arms opens the gate.
• Swing gate supported by LiftMaster hinges designed for swing gate  upto 3,000 Lbs.
• Tousek SafeLock system with Ø23 shaft.

K11 Renlita Vertical Bifold (2019)

• Counter weight balanced vertical bifold door.
• Proprietary Renlita door made in USA.
• Motorized by LiftMaster shaft operator.
• Weights 4 ton at 8.1m wide x 6.2m high.
• This is one of the largest automatic vertical bifold door in Hong Kong.

Jockey Club Cong Hua curved gate (2018)

• High speed curved slide gate for 8m wide driveway.
• Proprietary design Ø30 stainless steel curved rail.
• Tousek motor controlled by frequency convertor for high speed operation.
• Equipped with mechanical brake, absolute encoder and safety edges.
• Design-and-build in record breaking 2-month lead time.

Proprietary uphill slide gate (2018)

• Trapezoidal shape, even gap at bottom to fit 6m wide driveway.
• Proprietary 1-way reduction gear to balance the gate in manual mode.
• Driven by 3-phase Aprimatic motor for smooth operation.
• Equipped with mechanical travel limits and safety edge.
• UHF radar for automatic access control.

Jockey Club Tai Kwun (2018)

• BD approval superstructure (Metal Gate).
• 9m(w)x5m(h), powered by 2 Aprimatic hydraulic arms on each side.
• The larger leaf is over 2.5T in weight.
• This is one of the largest automatic gates in Hong Kong.
• Built-in door-in-door for pedestrian access.

K4 rated security gate (2017)

• 7m(w)x2.4m(h) slide gate powered by 3-phase motor at a high-security data center in TKO.
• K4 rated designed and built by Avon UK, our partner in rated security barriers.
• Ideal for embassy, bank, data center.
• GMS frame, powder coat finished.

Uphill slide gate: (patent pending)

• Uphill slide gate on 4° incline, no hang rail, 5m(w)x2.7m(h) opening.
• Powered by Tousek frequency-converter motor for remote control access.
• Mechanical brake holds the gate in stop position.
• Aluminium cladded GMS frame, double-layer aluminium tree pattern.

Curved slide gate: (patent pending)

• On-track curved slide gate, no hang rail, 5m(w)x3.2m(h) opening.
• Powered by Tousek frequency conventer motor for remote control access.
• Ideal for car park with no side room for normal slide gate.
• Aluminium cladded GMS frame, aluminium grille construction.

19 meter cantilever gate: (2017)

• On-slope cantilever gate, no hang rail, no ground rail, 10m(w)x3.2m(h) opening.
• Powered by Aprimatic 3-phase motor for remote control access.
• Ideal for sloped car park entrance with adequate side room.
• GMS frame, aluminium cladding inside, skew fins outside, dual color.

8 meter telescopic gate: (2016)

• Patented telescopic gate, both leaves driven by a single motor.
• Powered by Tousek frequency converter motor for remote control access.
• Ideal for car park entrance with limited side room.
• GMS frame, aluminium cladding, matching fence wall.

6 meter counter balanced slide gate: (2016)

• On-slope slide gate, no hang rail, no ground rail, balanced by counter weight.
• Powered by Tousek frequency converter motor for remote control access.
• Ideal for sloped car park entrance with limited side room.
• GMS frame, aluminium cladding with operable louvers.

6 meter telescopic gate: (2016)

• 6m slide gate GMS frame, GMS frame wrought iron pattern, dual-color.
• Powered by Aprimatic motor for remote control access.
• Ideal for car park with limited side room.
• 2 times faster than normal slide gate.

6 meter telescopic gate: (2016)

• 6m slide gate GMS frame, aluminium double-layer pattern, dual-clor.
• Powered by Aprimatic motor for remote control access.
• Ideal for car park with limited side room.
• 2 times faster than normal slide gate.

8 meter Renlita Sovereign, Shek-O: (2016)

• 8m slide gate GMS frame, aluminium double-layer pattern, tempered glass.
• Powered by Aprimatic 3-phase motor for remote control access.
• Aluminium frame and tempered glass construction for seaside salty environment.
• Owner designed this beautiful pattern, we built the whole facade.

5 meter Renlita Sovereign, Shek-O: (2016)

• One of it kind Renlita stacking door for garage without roof.
• Powered by ZAP opener for remote control access.
• Aluminium frame and tempered glass construction for seaside salty environment.
• Owner designed this beautiful pattern, we built the whole facade.

6 meter fold gates at Holiday Inn: (2015)

• Steel frame with aluminium computer-cut 3-D pattern.
• Powered by FAAC openers for remote control access.
• State-of-art rolling code transmission technology for remote controller ensures highest level of security.
• We designed and built both run-in and run-out gates for this prestigious hotel.

5 meter auto gates at Riva: (2015)

• Steel frame with double-layer aluminium computer-cut tree pattern.
• Powered by LiftMaster openers for remote control access.
• State-of-art rolling code transmission technology for remote controller ensures highest level of security.
• We designed and built 160 sets of gate for this prestigious development.

Martin Doors from USA: (2015)

• Aluminium section garage door with tempered glass top panel.
• Matching side door with letter box.
• Carriage style antique hardware.
• Powered with electrically operated opener for remote control access.

Renlita door from USA: (2015)

• Balanced by count-weight, the whole door goes up as if float-away.
• Built by Renlita USA according to ANSI standard.
• Approved by BD.
• Powered with electrically operated opener for remote control access.

2 sets of swing gates: (2014)

• 6m swing gate for vehicle access.
• 3m swing gate for pedestrian access.
• Classic design in matted black.
• Powered by underground opener for remote control access.

6 meter fold gate for Kadoorie Outlook: (2014)

• Proprietary fold gate specially designed for tight space.
• Double-layer aluminium wave pattern.
• No hanging track required.
• Powered by electrically operated opener for remote control access.

14.5 meter automatic slide gate: (2014)

• Stainless steel gate 1.8T in weight approved BD.
• Powered by LiftMaster SLY3500 for remote control access.
• Rubber safety edge will reverse closing door when obstruction detected.
• High tensile rail for heavy trucks.

5 meter Martin garage doors at Kam Sheung Road: (2014)

• Martin Athena 5-section garage doors.
• Stunningly modern with aluminium frame and tempered glass panels.
• Powered by LiftMaster garage door opener for remote control access.
• Metallic powder coat finish with matching louver for better ventilation.

5 meter wood slide gate: (2013)

• Steel frame with real wood and stainless steel trim.
• Powered by LiftMaster SLY500 opener for remote control access.
• With matching frameless aluminium fence and GSM intercom system.

5 meter Martin garage door at Constellation Cove: (2013)

• Martin Cornerstone model 5-section garage door.
• Windows in the top panel for better look and illumination.
• Powered by LiftMaster garage door opener for remote control access.
• 5-year warranty.

8 meter bipart slide gate: (2013)

• Steel frame with composite wood.
• Matching pedestrian door with electric lock.
• Powered by 2 LiftMaster SLY500 openers for remote control access.
• Design and built in record 2-week lead time.

5 meter copper slide gate: (2013)

• Made of pure copper panel and steel frame.
• Wicket side door for easy pedestrian access.
• Powered by LiftMaster SLY500 opener for remote control access.

Slide gates at Valais: (2013)

• Slide gates operated by mobile phone.
• Rubber safety edge will reverse closing door when obstruction detected.
• Powered by LiftMaster SLY500 opener for remote control access.

4 meter garage door: (2013)

• Automatic garage door for remote control access.
• Wicket door for easy pedestrian access.
• Even the wicket door is remote controlled.
• Note the extremely small trip-free threshold.

2 meter swing gate: (2013)

• The gate pattern is mathematically generated and CNC cut from a 1-piece of stainless steel.
• Wireless intercom based on GSM technology.
• Owner can open the gate with a mobile phone.
• Visitor using the intercom will be connected to the owner by mobile phone who can then open the gate even when he is not at phone.

6 meter swing-fold gate: (2013)

• The architect came to Wonderlee for solution to build automatic gate at main entrance of a slope.
• The trapezoidal middle panel folds right when open to avoid having a big gap on the downhill side if the gate were built in rectangular shape.
• Powered by LiftMaster SUB300 opener for remote control access.

4 meter slide gate: (2013)

• The gate pattern is mathematically generated and CNC cut from a 1-piece of stainless steel.
• The back side of the gate is covered by perforated screen to limit see-through.
• Powered by LiftMaster SLY500 opener for remote control access.

5 meter slide gate: (2013)

• We were contracted by developer to build a slide gate with matching pedestrian side gate
• The slide gate is powered by LiftMaster SLY500 for remote-control access.
• Mobile phone control is also installed.

4 meter slide gate: (2013)

• We were contracted by Sun Hong Kai to build a mock-up slide gate for one of her development.
• The slide gate is powered by LiftMaster SLY500 for remote-control access.
• As-built shop-drawings were submitted for later tendering process.

5 meter fold gate: (2013)

• We were contracted by Sun Hong Kai to build a mock-up fold gate for one of her development.
• The resulting fold gate consists of 2.5 leaf on each side powered by LiftMaster SUB300 underground openers for remote-control access.
• As-built shop-drawings were submitted for later tendering process.

7 meter fold gate: (2012)

• Because of the geometry of the garden, we designed the system so that the left side folds in whilst the right side folds out.
• The system is driven by LiftMaster SUB300 under-ground openers for remote-control access.
• The left side can be controlled singly for pedestrian access.

8 meter slide gate at Singapore International School: (2012)

• This gate is driven by a LiftMaster SLY 1000 electric openers.
• Security guard controls the gate with keyed switch for visitor access.
• School personnel would access with remote control.
• Infrared sensors, emergency-stop, flash and sounder are installed for safety compliance.

5 meter fold gate: (2012)

• Steel framed fold gate with wood cladding and wicket door for easy pedestrian access.
• The fold gate is powered by LiftMaster SUB500 for remote-control access.
• The remote control can also open the wicket door separately.

4 meter 1-piece garage door: (2012)

• This is the first wood-looking aluminum 1-piece garage door installed in Hong Kong.
• We designed and built this with LiftMaster LM-1000 top of the line belt drive garage door opener.
• The frosted tempered glass panels on top of the door keep the garage well-illuminated by day.
• The pedestrian small door makes access very easy.

5 meter bi-part swing gate: (2012)

• Owners at this gated community in Lantau wanted an automatic gate to keep the cows away.
• We designed a bi-part swing gate system with a LiftMaster SCS 300 openers.
• Owners and tenants use remote control to control the gate with auto-close enabled.
• The system also includes magnetic lock and keypad access side door. Please click here to see detail.

4 meter sectional overhead garage door: (2012)

• Architect contracted Wonderlee to design and build a garage door for a VIP customer.
• The covered carport situated on a 1:18 slope.
• We designed a level garage floor with sectional overhead garage door with wood pattern flush panel.
• With LiftMaster garage door opener, the door operates smoothly and quietly by remote control.

5 meter bi-part folding gate: (2012)

• Wonderlee won the tender of this prestigious estate managed by Jones Lang LaSalle in Repulse Bay.
• We designed a bi-part folding gate system with a LiftMaster SUB 300 openers.
• Owners and tenants use remote control or mobile phone to control the gate.
• The folding gate operates smoothly and quietly. Please click here to see footage.

5 meter bi-part slide gate: (2012)

• The owner in Tai Po would like a have the gate in natural wood with matching pedestrian gate.
• We designed a bi-part slide gate system with a LiftMaster SLY 500 openers.
• By using a 3-button remote control, he controls the gate in car mode or either side individually.
• We also wired up the garden light so that when the gate is activated at night with remote control, the garden light will be turned on too.

5.2m Aluminum-glass 1-piece garage door: (2012)

• Doors for slope are always a challenge to architects and installers.
• We designed and built this 1-piece garage door on a 1:15 slope in Clear Water Bay.
• The door is Aluminum frame, with Aluminum and tempered glasses infill panels.
• Only 1-piece doors work well on a slope. Sectional garage doors and roller shutters sit on uneven ground would not work well.
• We also built a small pedestrian door with keypad access with Aluminum frame and glasses.

4.7m Aluminum-wood-like 1-piece garage door: (2012)

• To match the overall architecture of the buildings, the owner chose a wood looking 1-piece door for the garage on a slope.
• The door is built with wood pattern Aluminum frame and Aluminum infill panels.
• Only tilt doors work well on a slope. Sectional garage doors and roller shutters sit on uneven ground would not work well.
• Tilt door opens 2 times faster than traditional garage door.

4 meter slide gate: (2012)

• The owner in Kam Sheung Road would like a have the gate in natural wood.
• We designed a slide gate system with a LiftMaster SLY 300 openers.
• By using a 3-button remote control, he controls the gate in car mode and pedestrian mode.
• We also wired up the garden light so that when the gate is activated at night with remote control, the garden light will be turned on too.

4.5m Aluminum-glass 1-piece garage door: (2012)

• The owner in Hong Lok Yuen would like an unique garage door.
• We designed and built this 1-piece garage door with tinted glasses.
• The tinted glasses have a see-thru rate of 60% from inside to outside, and about 20% from outside to inside
• LiftMaster LM800A garage door opener installed for quiet and smooth operation.

2.7m Aluminum-wood-glass garage tilt door: (2012)

• To match the stone architecture of the buildings, the developer chose a wood looking tilt door for the garages.
• The 1-piece door is built with Aluminum frame, 1 row of frosted tempered glasses on top and 3 rows of wood infill below.
• LiftMaster belt-drive opener is installed for smooth and quiet operation.
• Tilt door opens 2 times faster than traditional garage door. Chick here to see more.

7 meter biparting slide gate: (2011)

• The owner in Palm Springs would like a have the gate in natural wood.
• We designed a biparting slide gate system with 2 LiftMaster SLY 500 openers.
• By using a 3-button remote control, he controls the gate in car mode and pedestrian mode.
• Tilt-proofing frame is built to ensure absolute safety.
• Click here to see the biparting slide gate in action.

4.5 meter sectional Aluminum-glass door: (2011)

• The owner in Tai Po would like a trendsetting garage suitable for seaside.
• He selected sectional Aluminum garage door with frosted tempered glass, and LiftMaster electrical opener.
• The white Aluminum frame and frosted glass is the perfect match to the architecture of the house.
• Click here to see it in action.

2.6 meter canopy Aluminum-glass door: (2010)

• The Owners Incorporation voted for Aluminum doors when they re-renovated the building for its aesthetic appeal.
• Canopy doors are ideal for garages with ceiling obstruction.
• The new doors became a landmark of the neighborhood.
• Click here to see the canopy garage door in action.

4.5 meter Aluminum-glass garage tilt door: (2010)

• To match the architecture of the building, the owner chose matted black powder coated Aluminum frame with frosted tempered glasses.
• The garage is well lit at day, and becomes an amazingly beautiful scene at night when light turned on inside.
• LiftMaster belt-drive opener is installed for smooth and quiet operation.
• Click here to see 1-piece tilt door in action.

Copper swing door for Siheyuan: 2010)

• Traditional door for Siheyuan (四合院) built with copper.
• LiftMaster SCS 300 swing gate opener is installed for automatic access with remote control.
• Dial2open is also installed for telephone access.

3.6 meter bi-parting wooden swing gate: (2009)

• Because of wind load consideration, we designed this wooden swing gate with steel frame.
• The gates are hinged into the ground as the 40cm x 40cm pillars would not be strong enough to support the heavy gates at 200 Kg per leaf.
• LiftMaster LYN 400 swing gate opener is installed.
• See how we painstakingly making the gate at our well lit factory

3.8 meter bi-parting wrought iron swing gate: (2009)

• Each leaf can be controlled independently or jointly with a 3-button remote control.
• Top channel is added to ensure absolute safety
• 2 LiftMaster SLY 300 slide gate opener is installed.
• Click here to see it in action.

8 meter steel slide gate: (2009)

• The 8 meter long galvanized steel slide gate weights 800Kg.
• For absolute safety and reliability, we installed a LiftMaster SLY 1000 opener.
• 3 pairs of infra red senor are installed to monitor closing operation; an additional pair of sensor is installed to monitor opening operation.
• The gate is set to move at 20cm/second, in compliance to the Code of Practice of EMSD, HKSAR.

Steel garage door: (2009)

• The new owner in Happy Valley inherited a roller shutter when he moved in.
• He ordered a galvanized steel sectional garage door with LiftMaster electrical opener.
• The sectional garage door is also a good 2" higher than the roller shutter next door.
• Click here to take an inside look.

Aluminum-glass garage door: (2008)

• The owner in Stanley would like a trendsetting garage suitable for seaside environment.
• He selected Clopay Aluminum garage door with frosted tempered glass, and LiftMaster electrical opener.
• Aluminum and glass stand up perfectly against salty sea wind.
• The white Aluminum frame and frosted glass is the perfect match to the architecture of the house.

Stainless steel and wood sliding gate: (2008)

• The owner in Sai Kung ordered a 5 meter stainless steel and wood slide gate to match the architecture of her house.
• LiftMaster automatic slide gate opener was deployed to move this 500 Kg heavy gate.
• Rail and roller system was installed. Because the weight of the gate, the rail sank almost 5mm. During this inertial period of 3 months, adjustments were needed.
• After the ground settled, the gate works smoothly.

Stainless steel and glass swing gate: (2007)

• The owner would like an automatic gate when he moved into his newly acquired house in Fairview Park.
• We recommended LiftMaster swing gate opener and stainless steel-glass gate design.
• He opens the gate with remote control in his car when he comes home. An envy of his neigbours on rainy days.
• Click here to see how it works.
